Tiandao Pump Supply
Clean Water Pumps with Support Feet
30–30 m listed maximum head · 35–55 m³/h listed maximum flow

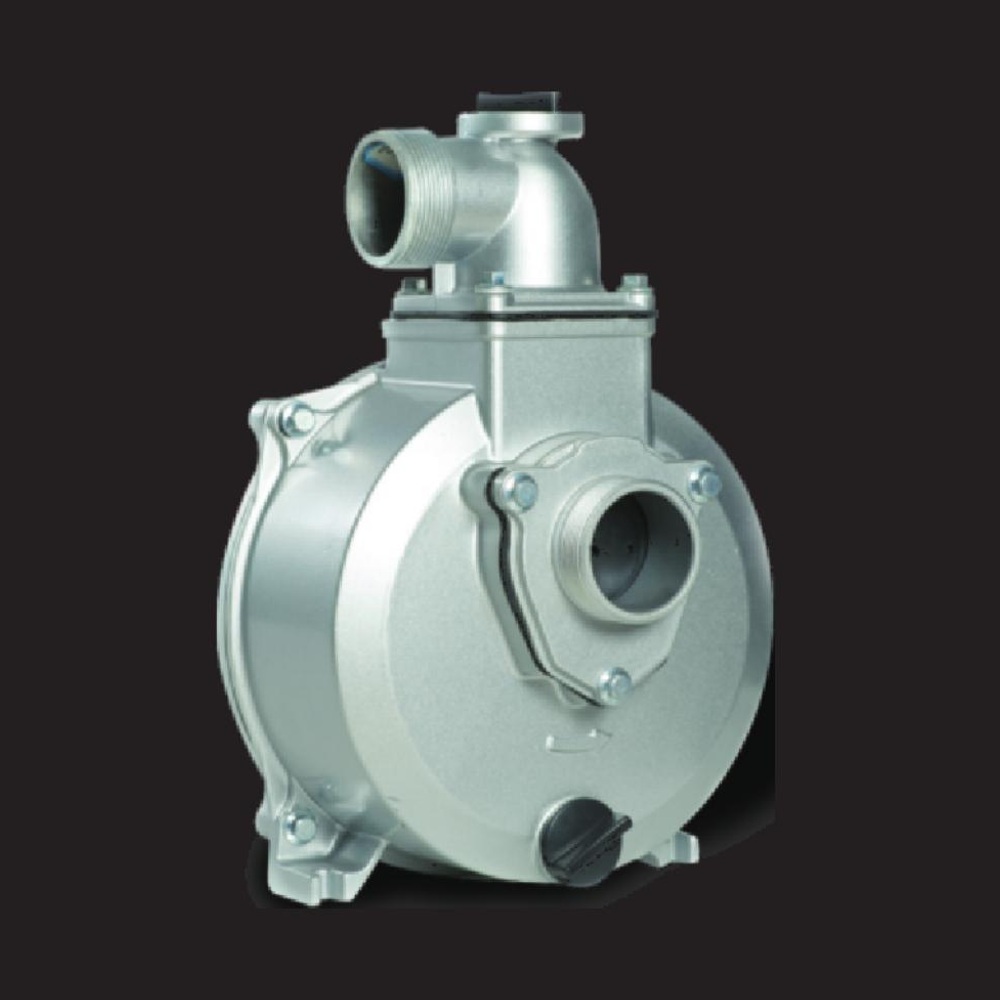

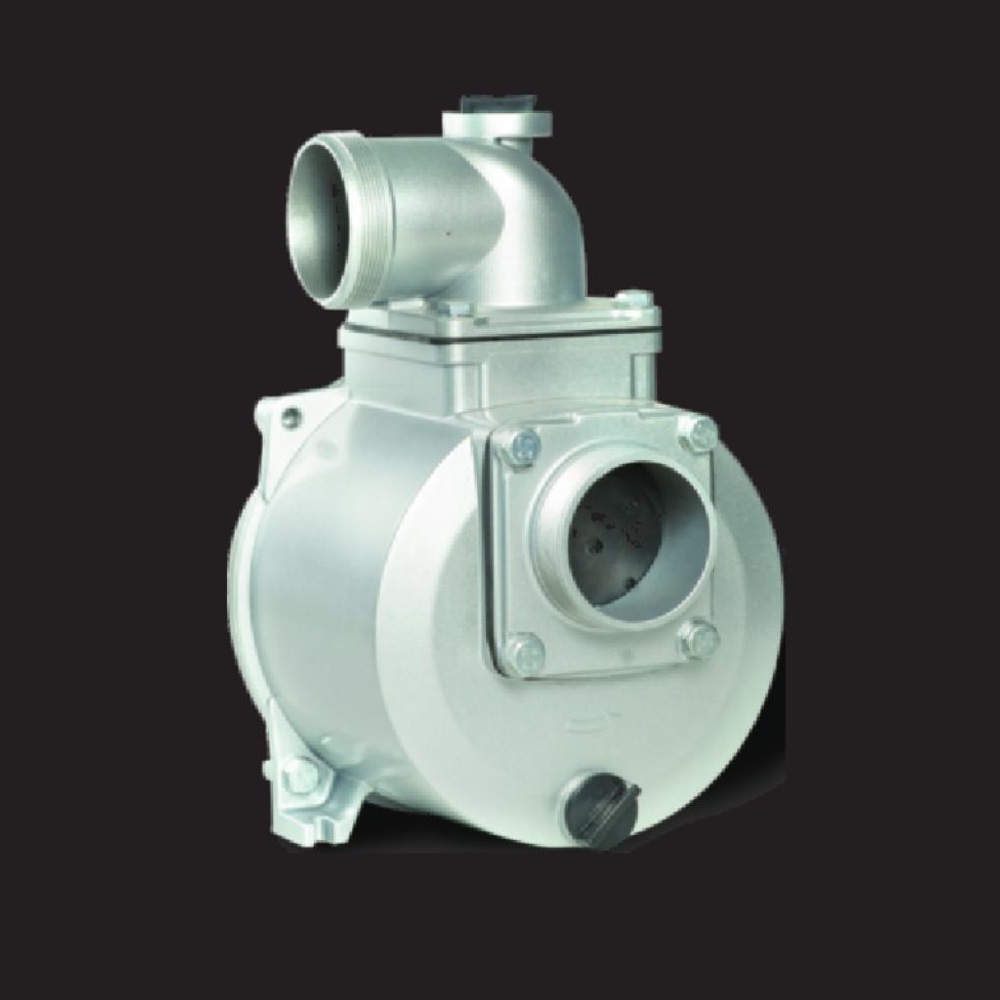

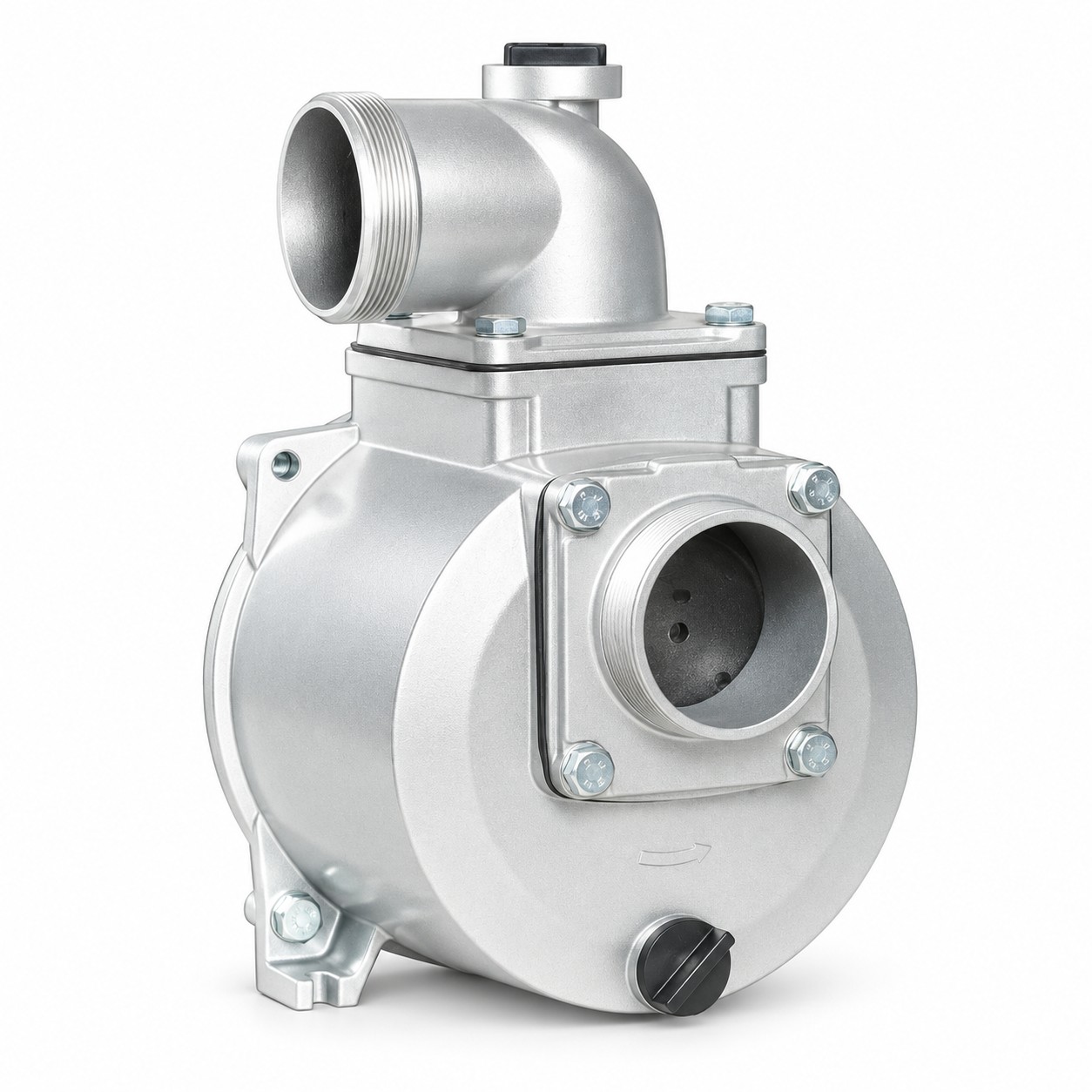

Clean Water Pumps with Support Feet
Aluminum alloy pump housing with a cast iron impeller. The supplier lists this range for farmland irrigation and drainage, garden watering and aquaculture water transfer.
Model comparison
| Configuration | Model | Max. head (m) | Max. flow (m³/h) | Max. suction lift (m) |
|---|---|---|---|---|
| 2-inch with support feet | QGZ50-35-30 | 30 | 35 | 8 |
| 3-inch with support feet | QGZ80-55-30 | 30 | 55 | 8 |
Values above are nominal maximum values transcribed from the supplier catalog, PDF page 10 (printed page 7). Maximum flow and maximum head are separate limits, not a guaranteed simultaneous duty point. Request the pump curve and configuration-specific tolerances before selection.
Request the right configuration
Send the model, quantity, liquid type, required flow and head, drive requirements, and delivery country. Confirm whether your quotation includes a bare pump, engine, frame, hoses or accessories. Images illustrate supplier configurations; the final scope is defined by your quotation.
Ordering
Pricing, availability, freight and lead time are confirmed by quotation. Online checkout becomes available for priced, stocked configurations. Bulk, OEM and project requirements can be discussed with our sales team through the inquiry form.
