Chemical & Seawater Pumps
28–37 m listed maximum head · 38–60 m³/h listed maximum flow
Chemical & Seawater Pumps

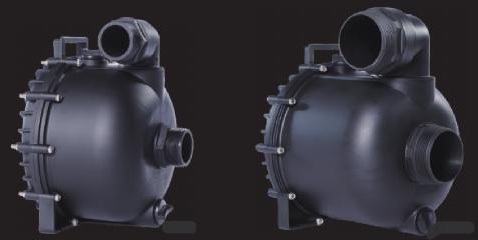

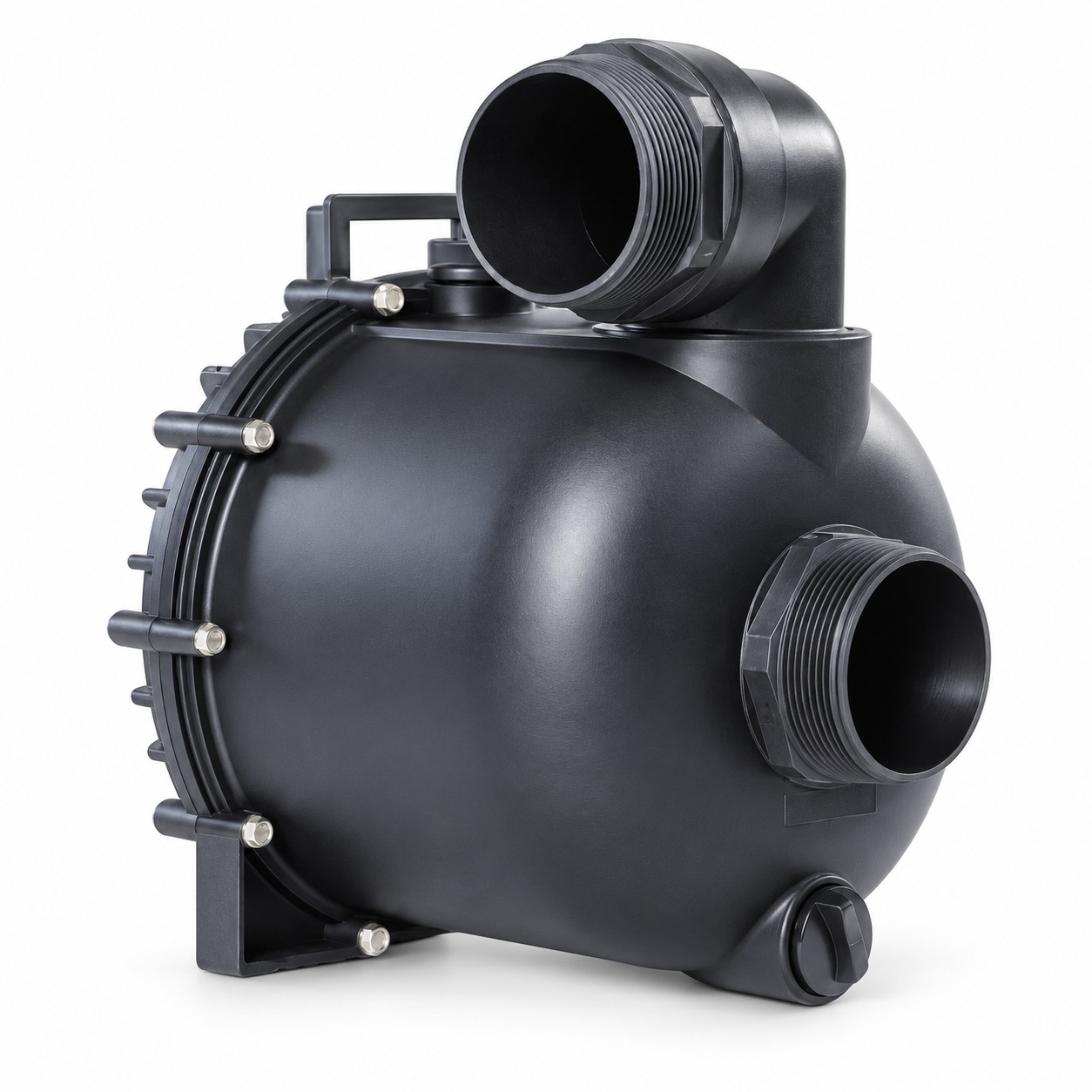

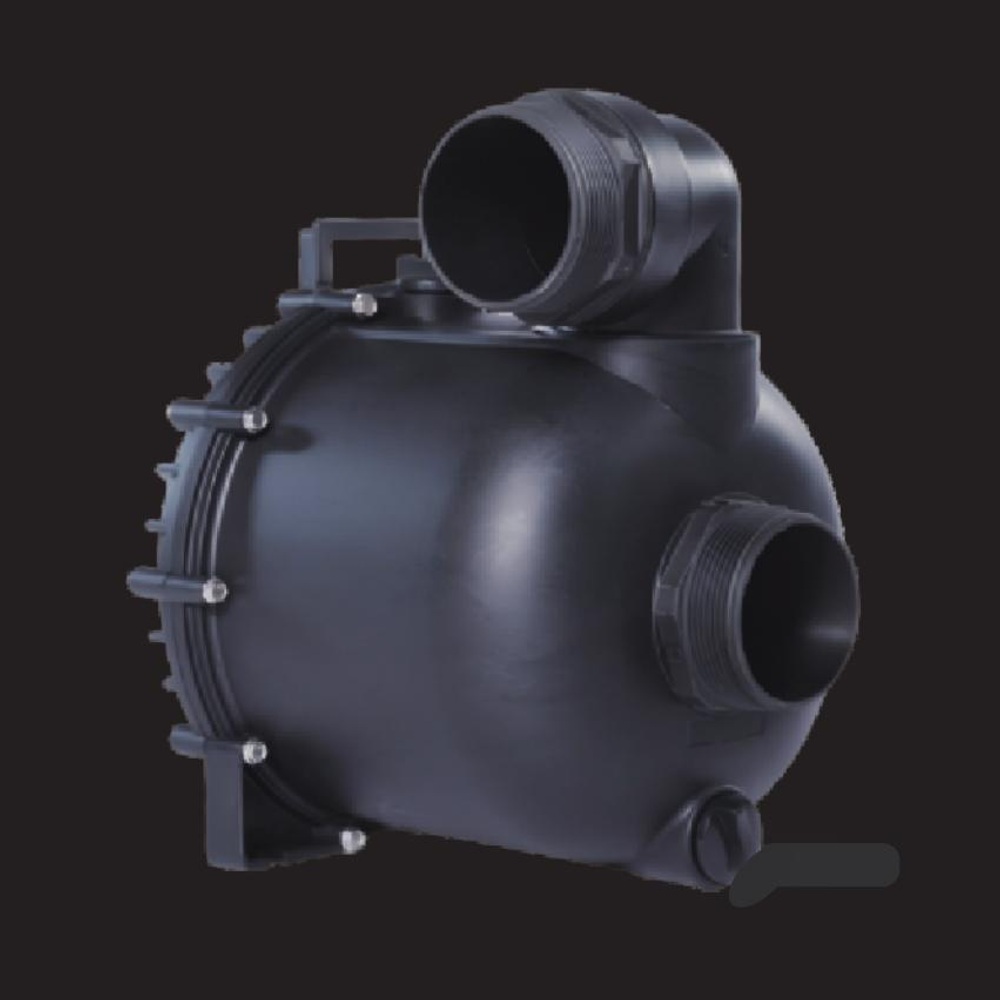

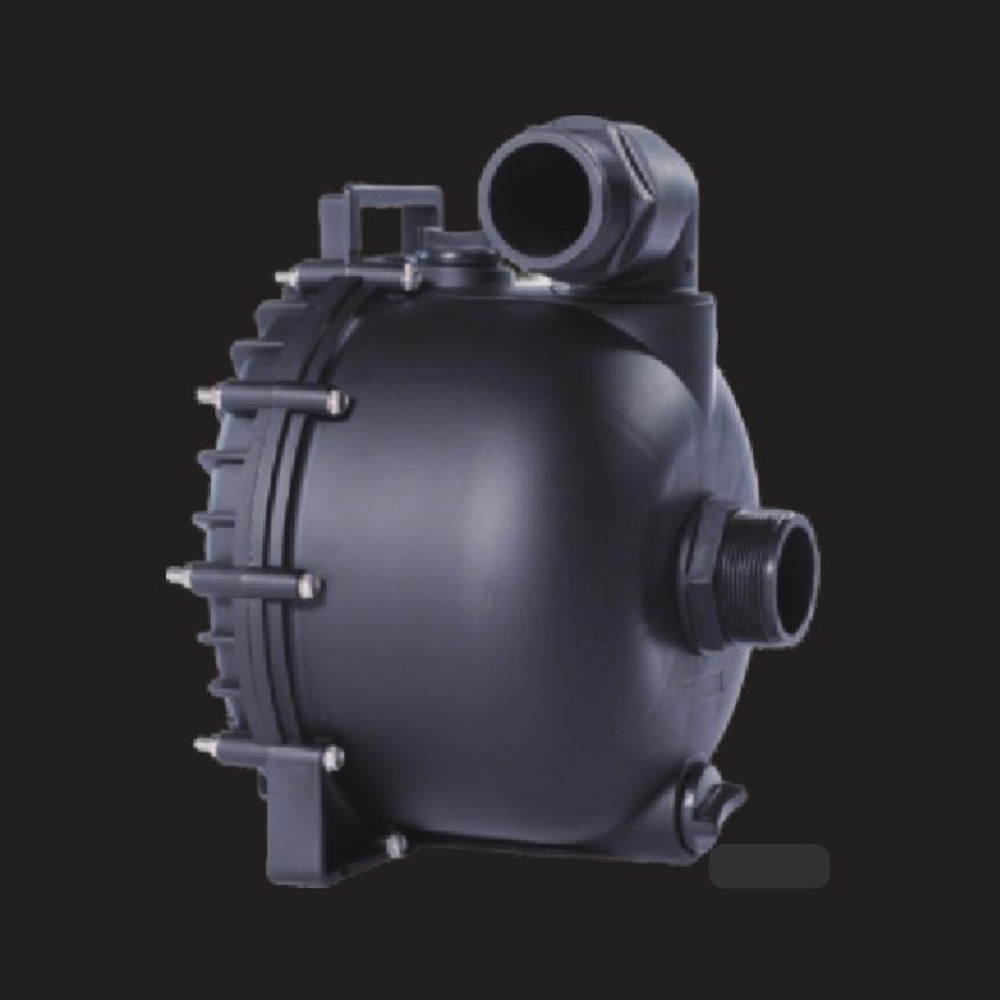

Nylon and fiberglass construction for selected chemical and seawater applications. The catalog lists a pH range of 4–11; liquid-temperature limits require confirmation. Material compatibility must be confirmed for the exact liquid, concentration and operating conditions.
Model comparison
| Configuration | Model | Max. head (m) | Max. flow (m³/h) | Max. suction lift (m) |
|---|---|---|---|---|
| 2-inch | QGHXB50-38-37 | 37 | 38 | 8 |
| 3-inch | QGHXB80-60-28 | 28 | 60 | 8 |
Values above are nominal maximum values transcribed from the supplier catalog, PDF page 17 (printed page 14). Maximum flow and maximum head are separate limits, not a guaranteed simultaneous duty point. Request the pump curve and configuration-specific tolerances before selection.
Request the right configuration
Send the model, quantity, liquid type, required flow and head, drive requirements, and delivery country. Confirm whether your quotation includes a bare pump, engine, frame, hoses or accessories. Images illustrate supplier configurations; the final scope is defined by your quotation.
Ordering
Pricing, availability, freight and lead time are confirmed by quotation. Online checkout becomes available for priced, stocked configurations. Bulk, OEM and project requirements can be discussed with our sales team through the inquiry form.
